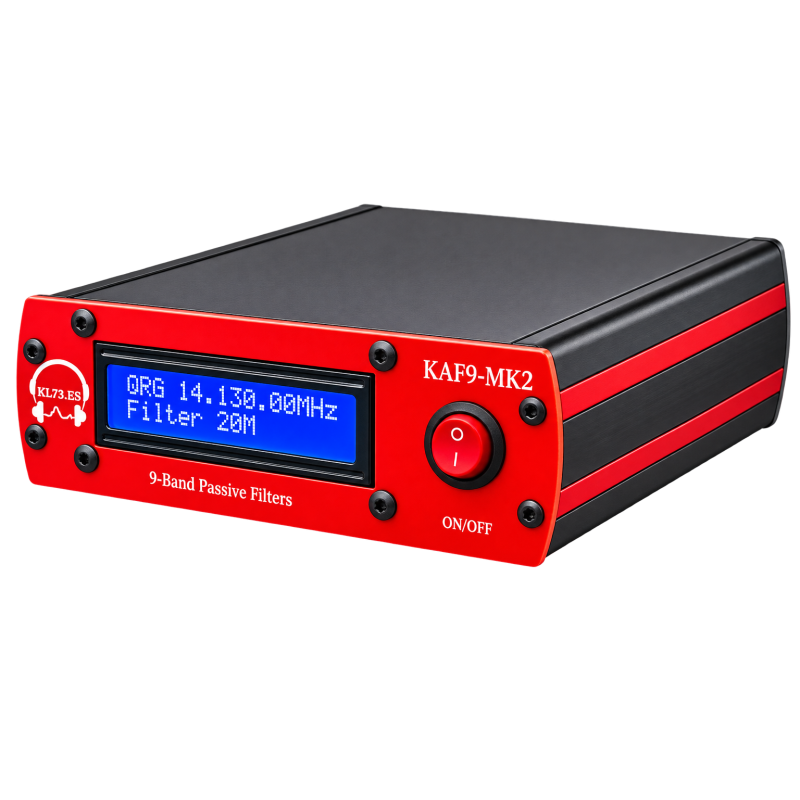

KAF9-MK2 — AUTOMATIC HF BANDPASS FILTER ARRAY

The KAF9-MK2 is a 9-channel HF bandpass filter array designed specifically to optimize reception for radio transceivers.

Thanks to its automatic operation, the KAF9-MK2 selects the filter corresponding to the band on which the equipment is operating. When switching bands—even remotely—the system automatically selects the appropriate filter.

A solution designed to improve reception and allow the transceiver to make the most of the signals present on each band.

Hear what you’ve been missing.

Application: HF RX Band-Pass Filter

Number of Bands: 9

Selectable Bands: 1.8 / 3.5 / 7.0 / 10.0 / 14.0 / 18.0 / 21.0 / 24.0 / 28.0 MHz

Band Selection: Automatic

Input Impedance: 50 Ω

Output Impedance: 50 Ω

RF Connectors: SMA Female

Supply Voltage: 12 V DC

Maximum Current: 1 A

Board Dimensions: 140 x 137 mm

 INCLUDED ACCESSORIES

1 × Power cable

1 × CAT cable for Icom

2 × SMA-to-SMA coaxial cables
